Product Basic Composition

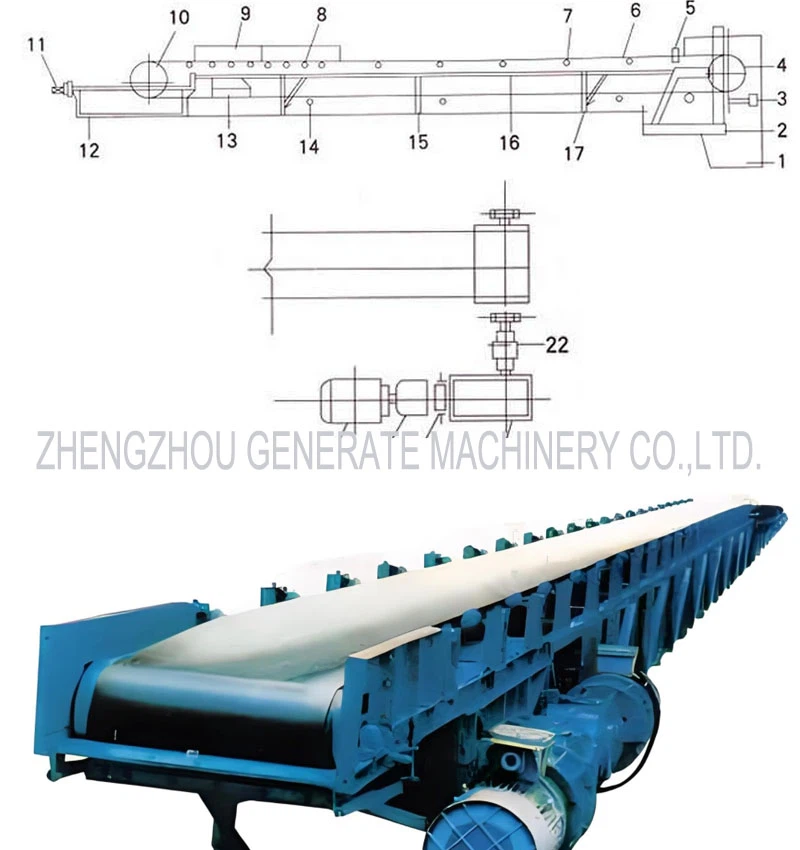

The industrial straight belt conveyor mainly consists of conveyor belt, idlers, drive unit, disc brake, backstop, tensioning device, feeding chute, belt scraper, and various supporting structures.
Range of Application
Industrial straight belt conveyors are applicable for horizontal material transportation. Featuring easy operation and versatile performance, they are widely deployed in modern industrial enterprises, including underground mine roadways, surface mine transportation systems, open-pit mines and ore processing plants.
Customizable to diverse conveying process requirements, the equipment can operate as an independent single conveying system, or be combined with other conveying machinery to form a multi-unit conveying system, as well as horizontal or inclined combined conveying lines, fully adapting to various site layout and process demands.
Technical Advantage
1. High Conveying Efficiency & Large Capacity
Adopting an optimized belt design and high-power driving system, the conveyor achieves efficient and continuous material conveying. The horizontal conveying speed can be flexibly adjusted according to actual needs, with a maximum speed of 4-6 m/s, which is significantly higher than traditional conveying equipment. At the same time, the belt width can be customized from 500mm to 2000mm, and the single-machine conveying capacity can reach 100-5000 t/h, effectively meeting the large-volume conveying needs of mines, ore processing plants and other enterprises, and greatly improving the overall production efficiency of the workshop.
2. Stable Operation & Low Failure Rate
The key components (such as conveyor belt, roller, reducer and motor) are made of high-strength wear-resistant materials, which have excellent corrosion resistance, impact resistance and wear resistance, and can adapt to harsh working environments such as dust, humidity and heavy load. The integrated transmission structure is scientifically designed, with reasonable force distribution, effectively reducing the wear of components during operation. The average failure-free operation time can reach more than 8000 hours, reducing the frequency of maintenance and downtime, and ensuring the continuity of the production line.
3. Flexible Configuration & Strong Adaptability
According to the actual layout of the factory and the requirements of the conveying process, the conveyor can be flexibly configured as a single conveying system or combined with other conveying equipment (such as elevators, inclined belt conveyors) to form a multi-unit combined conveying line, which can freely switch between horizontal and combined conveying modes. The length of the single machine can be customized from 10m to 1000m, and it can be installed in narrow spaces such as underground mine roadways and factory workshops, with strong adaptability to different site conditions.
4. Energy Saving & Environmental Protection
Equipped with an energy-saving motor and an optimized transmission mechanism, the conveyor can effectively reduce energy consumption. Compared with traditional conveying equipment, the energy consumption per unit of conveying capacity is reduced by 15%-25%, which helps enterprises reduce production costs and achieve energy conservation and emission reduction goals. In addition, the closed-type belt design can effectively prevent material scattering and dust overflow during the conveying process, reducing environmental pollution and meeting the modern industrial environmental protection standards.
5. Easy Operation & Convenient Maintenance
The conveyor is equipped with an intelligent control system, which can realize automatic start, stop, speed regulation and fault alarm, and the operation is simple and easy to master, reducing the labor intensity of operators. The structural design is humanized, with convenient maintenance ports and quick-dismantling components, which can greatly shorten the maintenance time and reduce the maintenance cost. At the same time, the equipment is equipped with a complete safety protection device (such as emergency stop switch, deviation correction device), which ensures the safety of operation.
6. Long Service Life & High Cost-Effectiveness
The high-quality materials and mature manufacturing process ensure the long service life of the conveyor. The service life of the main components (conveyor belt, roller) can reach 5-8 years, and the overall service life of the equipment is more than 10 years. The one-time investment cost is reasonable, and the long-term operation and maintenance cost is low. It can bring stable economic benefits to enterprises and has high cost-effectiveness.
Product Design Key Points
1) Working Environment & Operating Conditions
It is required to take into account the daily operating hours, operation frequency, design service life, as well as feeding and discharging modes of the belt conveyor.
Key environmental and operating parameters include: ambient temperature, indoor/outdoor installation, environmental protection standards, mobile or fixed type, and telescopic function requirements.
2) Conveyor Line & Belt Technical Parameters
Conveyor Line Layout
Detailed layout dimensions shall be confirmed, including inclination angle, overall maximum length, lifting height, dimension of straight section and curved section, and interface connection dimensions.
Conveyor Belt Parameters
Key belt design indicators: maximum allowable sagging value, simulated frictional resistance coefficient, material friction coefficient, and design safety factor.
